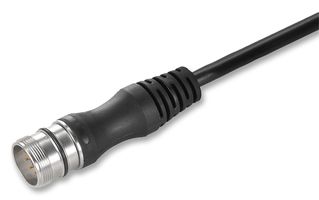

SAIS-M23-12P-ST-5.0M

The SAIS-M23-12P-ST-5.0M is a 5m 12-position Sensor/Actuator Cable with M23 straight connector one end and free end other. The sensor/actuator cable is used for wiring sensors and actuators and for transmitting data or power in various applications. The moulded cable offers connected and tested connection of the plug-in connector to the cable ex-works. The cable may be exposed to a wide range of conditions, such as humidity, dust, heat, cold, shock or vibration. The M23 cable offers high mating frequency, high current carrying capacity and high-density contacts coupled with minimal dimensions.

• Black PUR sheath
• TPM insulation
• Die-cast zinc threaded ring
• Gold-plated contacts
• 10¹²Ω Insulation resistance
• 8A Rated current
• IP67 Protection

Anwendungen

Sensortechnik
