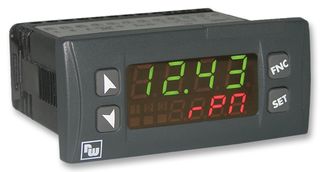

TA327401

The TA327401 is a 4-digit Tachometer with rotating direction indication in format 32 x 74mm. It is made of black and robust plastic case, PC ABS self-extinguishing housing. The compact small tachometer allows to read the frequency (maximum 100kHz) of a signal from single or double (bidirectional encoder) input. 2 universal digital inputs are available (NPN/PNP/contact) for external commands like output activation or Hold/Stop current visualization and one input it is also analogue in order to allow set-point modification by external potentiometers. Due to the two different modes and the indication of the rotating direction, the tachometer is usable for a lot of different applications. In addition to an excellent cost effectiveness and high quality, the counter offers a rugged, compact housing and a brilliant display.

• Universal AC-to-DC power supply
• Easy programming by front keys or software
• Screw terminal connection
• 2-line LED display
• Input frequency up to 100kHz
• UL94V-0 Flammability rating

Anwendungen

Industrie, Verbrauchsmessung
