MUX36D08IRSNR

MUX36D08IRSNR is a MUX36D08 (MUX36xxx) modern complementary metal-oxide semiconductor (CMOS) precision analogue multiplexer (mux). All digital inputs has transistor-transistor logic (TTL) compatible thresholds, providing both TTL and CMOS logic compatibility when operating in the valid supply voltage range. This has very low and off-leakage currents, allowing this multiplexer to switch signals from high input impedance sources with minimal error. Applications includes factory automation and industrial process control, programmable logic controllers (PLC), analogue input modules, ATE Test equipment, digital multimeters, and battery monitoring systems.

• 8.7pF low on-capacitance, 1pA low input leakage, 0.31pC low charge injection
• Rail-to-rail operation, break-before-make switching action
• Wide supply range from ±5V to ±18V, 10V to 36V
• 125ohm low on-resistance, 97ns transition time
• EN pin connectable to VDD, logic levels 2V to VDD
• 45µA low supply current, 2000V ESD protection HBM

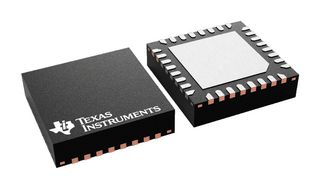

• 32pin QFN package, temperature range from -40 to 125°C
