RP10-11012DRAW

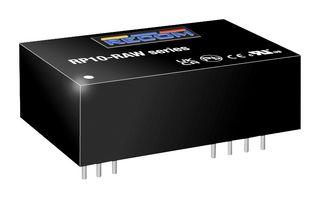

RP10-11012DRAW is a RP10-RAW series DC/DC converter in an industry standard, compact 24 pin DIP package. It is designed for railway rolling stock applications with an extra wide continuous input voltage range of 36-160VDC (200VDC for 1s), making them suitable for 72V, 96V and 110VDC railway systems, but they are also suitable for non-railway high voltage battery applications. The high efficiency permits an ambient temperature range from -40°C to more than 75°C without derating, forced cooling, or the need for heatsinks. The RP10-RAW series features UVLO, OVP, SCP, and OLP making them ideal for many harsh railway and industrial applications such as powering IoT sensors, battery management systems, or electric fork-lift trucks.

• Input voltage range from 36 to 160VDC, output voltage of ±12VDC
• Output current is ±416mA, efficiency is 87%, maximum load capacitance is ±250µF
• Ultra wide 4:1 input range
• Operating temperature is from -40°C up to +105°C with derating
• Input under voltage lockout
• 3KVAC/1min reinforced isolation
• Remote on/off
• UL62368-1, CAN/CSA-C22.2 No. 62368-1-14, IEC/EN62368-1-1, EN50155 certified
• Dimension is 31.8 x 20.3 x 10.6mm
• 3 year warranty
