NX5P3001UKZ
Power Load Switch, High Side, Active Low, AEC-Q100, 1 Output, 3.3 V, 3 A, 0.062 ohm, WLCSP-12

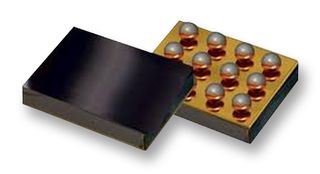

Image is for illustrative purposes only. Please refer to product description.
Product Information
ManufacturerNXP
Manufacturer Part NoNX5P3001UKZ
Order Code2803301
Technical Datasheet
Power Load Switch TypeHigh Side
No. of Channels1Channels
Input Voltage3.3V
Current Limit-
On State Resistance0.062ohm
IC Case / PackageWLCSP
No. of Pins12Pins
Thermal ProtectionYes
On / Enable Input PolarityActive Low
No. of Outputs1Outputs
Operating Temperature Min-40°C
Operating Temperature Max85°C
QualificationAEC-Q100
Product Range-
MSLMSL 1 - Unlimited
SVHCNo SVHC (27-Jun-2024)
Automotive Qualification StandardAEC-Q100
Distribution Switch Case StyleWLCSP
