2651A

Source Measure Unit, SourceMeter, ± 100mV to ± 40V, ± 100nA to ± 50A, 2 kW

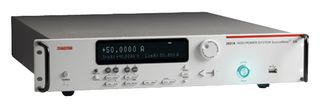

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
KEITHLEY KEITHLEY
Manufacturer Part No:
2651A
Order Code:
2074748
Product Range
2600A Series
Technical Datasheet:
2651A   Datasheet
See all Technical Docs

Product Range Selector (2600A Series)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
2600A Series

:
Current/Voltage Source, DMM, Electronic Load, Power Supply, Waveform Generator

:
2kW

:
± 100mV to ± 40V

:
± 100nA to ± 50A

:
-

:
1 Year

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (5)

CAD Downloads

×

Terms and Conditions

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

Accept Cancel

Product Overview

The high power 2651A SourceMeter SMU Instrument is specifically designed to characterize and test high power electronics. This SMU instrument can help you improve productivity in applications across the R&D, reliability, and production spectrums, including high brightness LEDs, power semiconductors, DC-DC converters, batteries, solar cells, and other high power materials, components, modules, and subassemblies.
  • Easily connect two units (in series or parallel) to create solutions up to ±100A or ±80V
  • 1pA resolution enables precise measurement of very low leakage currents
  • 1µs per point (1MHz), continuous 18-bit sampling, accurately characterizes transient behaviour
  • 1% to 100% pulse duty cycle for pulse width modulated (PWM)

Applications

Sensing & Instrumentation, Signal Processing, Test & Measurement

Contents

Model 7709-308A DB25 Male Connector Kit (Solder Cup) with Shell & Model CA-180-3A TSP-Link Cable.

Footnotes

In addition, we offer calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details.
Best Seller

Available to manufacturer lead time of 43 days

€21,400.00

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
Quantity Price Your Price


1+ €21,400.00
