CT7822

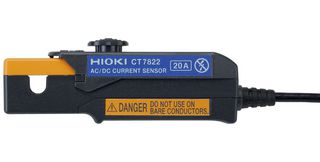

CT7822 is an AC/DC current sensor. With its compact design, this sensor easily connects to cables in tight motor compartments, significantly reducing setup time and enhancing overall efficiency. It features a small size while delivering precise and reliable performance across a wide temperature range. Perfect for automotive testing, it simplifies installation in tight spaces, enhances measurement accuracy, and improves testing efficiency. Low-level DC current can be measured with a high degree of accuracy, even in environments where the ambient temperature varies. This sensor accesses intricate wiring with ease and ensures stable, high-accuracy current measurements. Combined with the LR8450 data logger, it records CAN signals and current data simultaneously, enabling quick issue identification.

• Exceptional performance in a compact package
• Easy to install in confined locations with complex wiring
• Rated current: 20A AC/DC
• Compact, non-contact, and high-accuracy
• Operating temperature range from -40°C to 85°C
• 30A rms continuous (±43Ap) maximum allowable input
• DC to 100KHz bandwidth
• DC±0.3％ rdg. ±0.1％ f.s. basic accuracy
• φ 5mm or less core diameter
• Sensor dimension is 76.5mm W × 23.4mm H ×14.2mm D (excluding protrusions and the cable)

Contents

AC/DC current sensor, Coloured labels (for channel identification), Carrying case, Instruction manual, Operating precautions.
