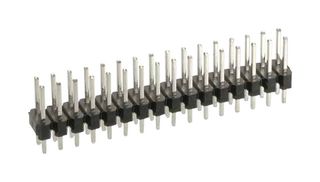

Pin Header, Vertical, Board-to-Board, 2.54 mm, 2 Rows, 72 Contacts, Through Hole Straight

HARWIN M20-9983645

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
HARWIN HARWIN
Manufacturer Part No:
M20-9983645
Order Code:
1022243
Product Range
M20 Series
Technical Datasheet:
M20-9983645   Datasheet
See all Technical Docs

Product Range Selector (M20 Series)

See all from this product range

Product Overview

The M20-998 series from Harwin are 2.54mm pitch, double row DIL vertical PC tail pin headers.
  • 6.1mm mating height
  • Number of contacts varies from 2 to 40 per row
  • Available in gold and tin over nickel finish
  • Contact material is brass
  • UL94 V-0 black colour high temperature polyamide (Nylon) 6T moulding
  • Current rating is 3A maximum
  • Contact resistance is 25mohm maximum (gold) and 30mohm maximum (tin)
  • Operating temperature range -40°C to 105°C
  • Durability of 300 operations (gold) and 50 operation (tin)
  • Dielectric strength of 750VAC/DC

Applications

Industrial

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Board-to-Board

:
2.54mm

:
2Rows

:
72Contacts

:
Through Hole Straight

:
M20 Series

:
Unshrouded

:
Brass

:
Gold Plated Contacts

Find similar products Choose and modify the attributes above to find similar products.
