GPT-9902A

Electrical Safety Tester, GPT-9900 Series, AC/DC Withstanding Voltage, 0.1kV to 5kV, 0.1kV to 6kV

GW INSTEK GPT-9902A

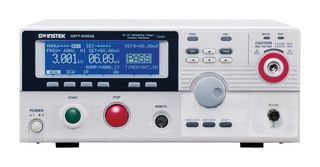

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
GW INSTEK GW INSTEK
Manufacturer Part No:
GPT-9902A
Order Code:
2748534
Product Range
GPT-9900 Series
Technical Datasheet:
GPT-9902A   Datasheet
See all Technical Docs

Product Range Selector (GPT-9900 Series)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
GPT-9900 Series

:
AC/DC Withstanding Voltage

:
0.1kV to 5kV

:
0.1kV to 6kV

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (2)

CAD Downloads

×

Terms and Conditions

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

Accept Cancel

Product Overview

The GPT-9902A from GW Instek is a GPT-9900 series A.C. 500VA AC/DC withstanding voltage tester. It is capable of performing both AC and DC withstanding tests. The high efficiency PWM amplifier is the core of GPT-9902A platform design to impede the influence from voltage fluctuation of input AC source. The output voltage is automatically cut off (within 150µs) upon the detection of an abnormal output voltage or a trip of current limits during test to protect the operator from hazardous injury. The GPT-9902A automatically discharges the DUT after each test to eliminate excessive voltage that remains on the DUT. Following a tidy and easy to use design concept, the tester is equipped with a simple & clear panel layout, a high resolution dot matrix LCD display and colour LED indicators allowing operators to interpret measurement results easily and quickly. The sweep function of GPT-9902A is able to display the test results point by point all through the testing period to form a trace gr
  • 0.050KV to 5.000KV AC withstanding, 0.050KV to 6.000KV DC withstanding
  • RS-232C, USB, signal I/O and GPIB (optional) interface, 100 memory block for test condition setting
  • AC 100V/120V/220V/230V ±10%, 50/60Hz power, 330 (W) x 148 (H) x 482mm(D) dimension, 27Kg weight
  • 240x64 ice blue dot matrix LCD, sweep function for DUT characteristic analysis
  • Function key for quick selection, high intensity flash for caution & status indication
  • Safety interlock function, zero crossing turn-on operation, controllable ramp-up time
  • High resolution, 1µA for measuring current, 2V for setting voltage, true RMS current measurement
  • PWM amplifier to enhance the power efficiency and reliable testing
  • Maximum 100 memory block for test condition (step) setting, manual/auto mode
  • Rear panel output for system application, safety discharge

Applications

Test & Measurement

Contents

GPT-9902A AC/DC withstanding voltage tester, Quick start guide, CD (completed user manual), Power cord, Interlock key, Remote terminal male plug, Test lead GHT-114 x 1.

Footnotes

Never touch the safety tester, lead wires, terminals, probes and other connected equipment when the tester is testing.

Warnings

The GPT-9000/9900A series is a high voltage instrument that outputs dangerous voltages. GPT-9000/9000A Series User Manual describes precautions and procedures that must be followed to ensure a safe work environment.

Available to manufacturer lead time of 127 days

€2,445.00

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
Quantity Price Your Price


1+ €2,445.00
