BK1694

Bench Power Supply, Adjustable, 1 Output, 1 V, 30 V, 30 A

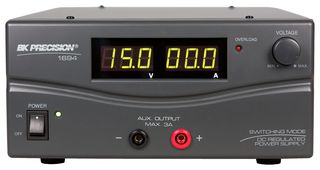

B&K PRECISION BK1694
B&K PRECISION BK1694
B&K PRECISION BK1694

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
BK1694
Order Code:
2843451
Product Range
BK Precision - 1690 Series High Current Switching DC PSUs
Also Known As:
1694
Technical Datasheet:
BK1694   Datasheet
See all Technical Docs

Product Range Selector (BK Precision - 1690 Series High Current Switching DC PSUs)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Adjustable

:
1 Output

:
1V

:
30V

:
-

:
30A

:
900W

:
100V

:
240V

:
1 Year

:
BK Precision - 1690 Series High Current Switching DC PSUs

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (2)

CAD Downloads

×

Terms and Conditions

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

Accept Cancel

Product Overview

The BK1694 from B&K Precision is a high current switching DC power supply. This lightweight and compact device includes a remote sensing terminal to compensate for voltage drop across load leads. The output voltage level can also be externally controlled via an analogue remote control terminal. The bright red LED for overload/short circuit indication and green LED provide power on/off indication. This power supply comes with one year warranty.
  • Front panel auxiliary output, 3-digit LED displays
  • Variable output voltage is 1 to 30V at 30A
  • Rated auxiliary output current is 3A
  • Current fold back circuitry with illuminated indicator prevents overloading power supply
  • Protections: overtemperature, overvoltage, overload (constant current limiting), short circuit
  • 40mVpp ripple and noise
  • Operating temperature range from 32°F to 104°F (0°C to 40°C), <= 80% R.H
  • 0.1% + 5mV load and 0.05% + 3mV line regulation
  • Efficiency >85%
  • Dimensions is 220mm x 110mm x 360mm (W x H x D), 5.8Kg weight

Contents

BK1694 power supply, Power cord, Instruction manual, Remote control connector.

Footnotes

In addition, we offer calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details.

Also Known As

1694
