63812-1

Contact, MK I Series, 14 AWG, Tin Plated Contacts

AMP - TE CONNECTIVITY 63812-1
×
×

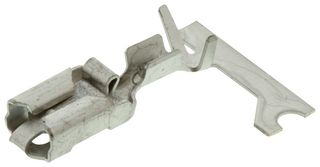

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
63812-1
Order Code:
2101903
Product Range
MK I Series
Technical Datasheet:
63812-1   Datasheet
See all Technical Docs

Product Range Selector (MK I Series)

See all from this product range

Product Overview

The MK I series positive lock Receptacle Terminal specifically designed to provide ease of assembly and secure retention to mating tabs. These unique features are attainable by the reduced insertion force of the product and the locking dimple. The receptacle locks onto mating tabs containing holes and is removable only by deflecting an integrally designed depressor prior to withdrawal. The depressor can be deflected manually by thumb pressure or automatically by a cam inside a specially designed nylon housing. If the housing is employed, removal of the terminal from the tab is performed by simply applying withdrawal force to the housing. In addition to providing a means of disconnecting the terminal, the housing performs its traditional insulating function. Aside from reduced insertion forces, positive lock receptacles give the assembler a definite mechanical snap when the terminal is correctly seated over the mating tab.
  • Reduced insertion force
  • Locks onto tabs containing holes
  • Housing insulates and serves as a removal tool
  • Snap action tells assembler receptacle is mated properly
  • Terminated by automatic or semi-automatic equipment
  • Single and multiple circuit housings available

Applications

Industrial

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
MK I Series

:
-

:
-

:
14AWG

:
Tin Plated Contacts

:
-

:
18AWG

:
Brass

Find similar products Choose and modify the attributes above to find similar products.
