1658610-1

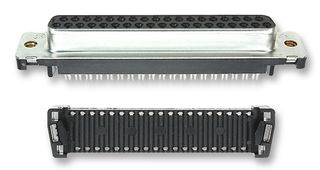

D Sub Connector, DB37, Standard, Receptacle, AMPLIMITE HDF, 37 Contacts, DC, IDC / IDT

AMP - TE CONNECTIVITY 1658610-1
×
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
1658610-1
Order Code:
1772796
Product Range
AMPLIMITE HDF
Technical Datasheet:
1658610-1   Datasheet
See all Technical Docs

Product Range Selector (AMPLIMITE HDF)

See all from this product range

Product Overview

The 1658610-1 is a 37-way 2-row D-sub Receptacle for flat ribbon cable with gold-plated phosphor bronze contacts. The Amplimite HDF-20 series receptacle comes with black thermoplastic housing, bright tin-plated steel shell, 4-40 UNC brass threaded inserts and tin-plated solder tail. It accepts 28/26AWG solid and stranded round conductor flat ribbon cable on 0.050-inch centers.
  • Visual inspection of termination possible
  • Wide range of application tooling
  • Patented insulation displacement contact latches into the connector cover
  • Contact design provides a "gas-tight" termination
  • Low profile
  • UL94V-0 Flammability rating

Applications

Industrial, Computers & Computer Peripherals

Warnings

Market demand for this product has caused an extension in lead times, delivery dates may fluctuate

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Standard

:
37Contacts

:
Receptacle (View Associated Connectors)

:
DC

:
AMPLIMITE HDF

:
IDC / IDT

:
Steel Body

:
Cable Mount, Panel Mount

:
Phosphor Bronze

:
Gold Plated Contacts

Find similar products Choose and modify the attributes above to find similar products.
