MAX40089EVKIT#

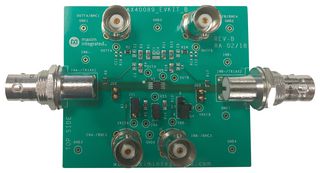

Evaluation kit (EV kit) to evaluate both MAX40077 and MAX40089 dual channel op amps. The MAX40089 (EV kit) printed circuit board (PCB) comes installed with MAX40089AUT+ in an 8 μMAX package. It is suitable for use in ADC buffers, DAC output amplifiers, digital scales, low-noise microphone/preamplifiers, medical instrumentation, pH probes and reference electrodes, strain gauges/sensor amplifiers and transimpedance amplifiers.

• 2.7V to 5.5V supply voltage range across VDD and VSS
• 42MHz gain bandwidth product (MAX40089)
• 10MHz gain bandwidth product (MAX40077)
• Ultra-low distortion (0.0002% with 1Kohm load)
• Proven PCB layout
• Fully assembled and tested
