STEVAL-IDP003V1

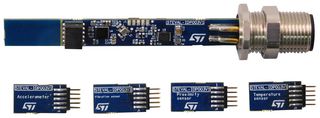

STEVAL-IDP003V1 kit includes the STEVAL-IDP003V1D evaluation board based on the L6362A IO-Link device transceiver and the STM32L071CZ microcontroller for data processing, as well as the following sensor daughter boards: STEVAL-IDP003V1T hosting the STTS751 temperature sensor, STEVALIDP003V1V hosting the IIS2DH MEMS sensor, STEVAL-IDP003V1A hosting the IIS328DQ MEMS sensor and STEVAL-IDP003V1P hosting the VL6180X proximity sensor. The evaluation kit is equipped with an industrial M12 connector (required by the standard) for connection with a single host IC using a 20-meter cable. The wire is a normal three-pole wire: one for IO-Link data, one for the L+ line (positive supply voltage pole) and one for the L- line (negative supply voltage pole). The layout is designed to meet IEC61000-4-2/4 and EN60947 requirements for the industrial sector.

• Main supply voltage is 32V maximum
• IO-Link PHY using the L6362A device for data communication with host unit
• DC-DC converter and linear regulator on board
• Integrated reverse polarity protection on L6362A Ics
• 400KHz I²C communication
• Multi-sensor connection
• PCB designed to accept real industrial sensors (8 mm x 70 mm, with 0.8mm thickness)
• Designed to meet IEC industrial standard requirements

Lieferumfang

STEVAL-IDP003V1D evaluation board, STEVAL-IDP003V1T board, STEVALIDP003V1V board, STEVAL-IDP003V1A board, STEVAL-IDP003V1P board.
