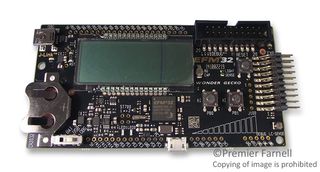

EFM32WG-STK3800

The EFM32WG-STK3800 is a starter kit which helps to get familiar with EFM32WG990F256 Wonder Gecko 32bit microcontroller. The EFM32WG990F256 is a ARM Cortex-M4 32bit microcontroller with 256KB flash and 32KB SRAM. This microcontroller revolutionizes the 8bit to 32bit market with a combination of unmatched performance and ultra low power consumption in both active and sleep modes. The EFM32WG990F256 device consume as little as 230μA/MHz in run mode. The starter kit contains sensors and peripherals demonstrating some of the microcontroller many capabilities and can serve as a starting point for application development. The onboard SEGGER J-Link debugger and an advanced energy monitoring system allows to program, debug and perform real time current profiling of application without using external tools.

• 160 segment Energy Micro LCD
• 20 pin expansion header
• Breakout pads for easy access to I/O pins
• Power sources include USB and CR2032 battery
• Two user buttons, two user LEDs and a touch slider
• Ambient light sensor and inductive capacitive metal sensor
• EFM32 OPAMP footprint
• USB micro AB (OTG) connector
• 0.03F super capacitor for backup power domain
• 32MB NAND flash

Anwendungen

Automatisierung & Prozesssteuerung, Verbrauchsmessung, Sicherheitstechnik, Medizinelektronik, Industrie, Gebäudeautomatisierung
