RTK5RLG140C00000BJ

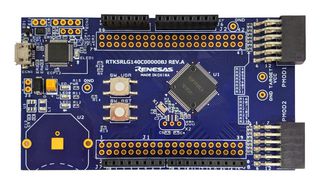

RTK5RLG140C00000BJ is a RL78/G14 fast prototyping board (RL78/G14 FPB). The RL78/G14 fast prototyping board comes equipped with a high-performance RL78/G14 microcontroller and is an evaluation board specialized for prototype development for a variety of applications. It has a built-in emulator circuit that is equivalent to an E2 emulator Lite so you can write/debug programs without additional tools. In addition, with Arduino Uno and Pmod™ interfaces included standard and through-hole access to all pins of the microcontroller, and so on, it has high expandability. Suitable for LoRa®-based solutions for RL78 family.

• Equipped with an RL78/G14 16bit microcontroller 80-pin, 512KB ROM, 48KB RAM
• No additional tools for program debugging with built-in emulator equivalent to an E2 emulator Lite
• Through-holes with access to all of the pins of the microcontroller
• Arduino Uno and Pmod™ interfaces come standard
• Support for various RL78 software and tools

Lieferumfang

RL78/G14 fast prototyping board (RTK5RLG140C00000BJ), Quick start guide.
