CWH-CTP-BASE-HE

CWH-CTP-BASE-HE is a CodeWarrior TAP high performance probe base unit, supports Ethernet and USB. The CodeWarrior® TAP enables target system debugging via a standard debug port (usually JTAG) while connected to a developer's workstation via Ethernet or USB. Using the CodeWarrior TAP's Ethernet connection, you can debug systems remotely or effectively share a single system with multiple developers. When a shared system is not needed, CodeWarrior TAP connects directly to a workstation with a single USB cable via which power is supplied. The CodeWarrior TAP is designed to work with CodeWarrior development tools and processors. It is a critical debug tool in all phases of the project and is necessary for debugging systems prior to running a fully debugged operating system.

• Allows either USB or Ethernet (10/100) host connection for the developer workstation
• USB powered, even when using Ethernet and supports debugging via JTAG interface
• Low-cost removable probe tips sold separately
• Automatically supports system voltage levels from 1.2 to 3.3
• Supports all available core speeds and voltages for supported NXP® processors

Lieferumfang

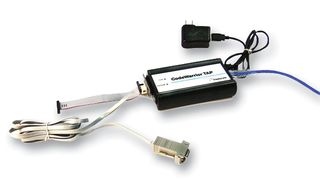

CodeWarrior TAP probe, CodeWarrior TAP probe USB power supply, CodeWarrior TAP USB cable, CodeWarrior TAP RJ11/DB9 adapter, CodeWarrior TAP serial cable.
