EVB8740

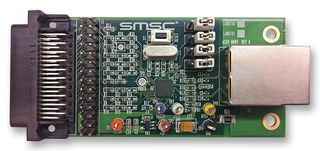

EVB8740 is a PHY evaluation board that interfaces a Media Independent Interface (MII) MAC controller to the LAN8740A Ethernet MII PHY via a standard 40 pin MII connector. The LAN8740A is connected to an RJ45 Ethernet jack with integrated magnetics for 10/100 connectivity. The LAN8740A is a low power, 10BASE-T/100BASE-TX physical layer (PHY) transceiver with variable I/O voltage that is compliant with the IEEE 802.3, 802.3u, and 802.3az (Energy Efficient Ethernet) standards. Energy Efficient Ethernet (EEE) support results in significant power savings during low link utilizations.

• Single chip Ethernet PHY
• Comprehensive flexPWR technology
• Energy Efficient Ethernet (IEEE 802.3az)
• Cable diagnostics
• Deterministic latency
• Uses a low cost 25MHz crystal for RMII mode to drive 50MHz output
• Wake on LAN
• HP Auto-MDIX support

Anwendungen

Unterhaltungselektronik, Tragbare Geräte, Industrie, Messtechnik, Wireless, Kommunikation & Netzwerke

Hinweise

Gewährleistung nur für 90 Tage. Nach Ablauf der Gewährleistung müssen Retouren über Microchip abgewickelt werden.
