EVB8710

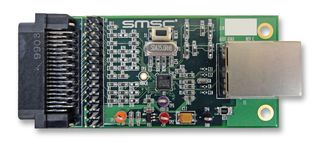

EVB8710 is a PHY evaluation board that interfaces a MAC controller to the LAN8710 Ethernet PHY via a standard 40 pin MII connector. The LAN8710 is connected to an RJ45/Integrated Magnetics Ethernet Jack for 10/100 connectivity. The LAN8710A is a low power, small form factor, highly integrated analog interface IC for high performance embedded Ethernet applications. The LAN8710A requires only a single +3.3V supply and provides an integrated +1.2V supply to run the core digital logic. The LAN8720A is the industry's smallest footprint solutions with up to 40% lower power consumption than existing SMSC transceivers.

• Standard RJ45 connector with integrated magnetics and LED indicators for link and activity
• On board LED indicators for speed 100 and full duplex
• Supports MII and RMII operation
• Interfaces through 40 pin connector
• Powered by 5.0V from the 40 pin connector
• Includes probe points on all MII/RMII data and control signals for troubleshooting
• Sources RMII REF_CLK
• Supports user configuration options including PHY address selection
• Integrated 3.3V regulator
• Includes 25MHz crystal for internal PHY reference

Anwendungen

Kommunikation & Netzwerke, Industrie, Unterhaltungselektronik
