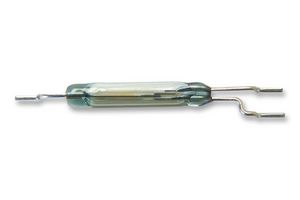

MK23-90-C-2

Reed Switch, SPDT, Surface Mount, 500 mA, 175 V, 10 W

STANDEXMEDER MK23-90-C-2

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
MK23-90-C-2
Order Code:
2453626
Technical Datasheet:
MK23-90-C-2   Datasheet
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
-

:
SPDT

:
Surface Mount

:
500mA

:
175V

:
10W

:
0.15ohm

:
15AT

:
20AT

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

CAD Downloads

×

Terms and Conditions

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

Accept Cancel

Product Overview

The MK23-90-C-2 is a miniature surface-mount Reed Switch features flat/bent SMD leads (gull-wing), glass length of 14mm and diameter of 2.54mm. The MK23-90 surface-mount reed switch is a bare glass version of surface-mount reed sensors, offering a more economic and compact design as compared to over-moulded reed sensors.
  • Long life expectancy
  • 150mR at 0.5V/10mA Maximum contact resistance
  • 10⁹R at 100V Insulation resistance
  • 0.2kVDC Minimum breakdown voltage
  • 1.5pF at 10kHz Typical capacitance

Applications

HVAC, Sensing & Instrumentation, Security, Automotive, Communications & Networking, Test & Measurement, Medical

Packaging type Cut Tape
  Additional packaging options available
Re-reel (minimum 10/reel):2453626RL Check stock

1,952 In stock Need more?
