DM320015 -

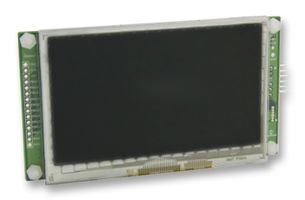

Entwicklungsboard, PIC32-GUI, projiziert-kapazitiver Touchscreen

Abbildung ggf. ähnlich. Alle Angaben ohne Gewähr. Ausschlaggebend sind die Produktinformationen des Herstellers.

Herstellerteilenummer:
DM320015
Bestellnummer:
2254704
Technisches Datenblatt:
(EN)
Technische Dokumentation anzeigen

Produktspezifikationen

:
Sensorik - Berührung, Näherung
:
Kapazitive Berührungstechnik
:
PIC
:
Microchip
:
WQVGA 4.3 Display, Projected Capacitive Touch Device MTCH6301, USB Port, Expansion Header
:
-
:
PIC32MX795Fxxxx
:
PIC32MX
:
PIC32
Finden Sie ähnliche Produkte Passen Sie die Auswahlkriterien oben an, um nach ähnlichen Artikeln zu suchen.

Produktbeschreibung

DM320015 is a PIC32 GUI development board with projected capacitive touch enables development of cost effective multi touch graphical user interfaces. It is based on PIC32MX795F512H with 105 DMIPS performance, 512KB Flash and 128KB RAM. The PIC32 is coupled with a low cost PSRAM as a high speed graphics frame buffering and a 4.3inch WQVGA touch display enabling development of graphics solutions without an external graphics controller. Additionally the board provides USB host and device connectivity and supports I/O connections via through hole pads for custom board attachment. Multi touch user input is supported by Turnkey projected capacitive touch controller, MTCH6301. The board is a standalone development platform that can be programmed/debugged via the on board 5 pin In Circuit Serial Programmer interface designed for PICkit3 in circuit debugger.
  • Based on PIC32MX795F512 device with 512KB Flash and 128KB RAM
  • Projected capacitive touch device MTCH6301
  • WQVGA 4.3inch display
  • USB port for Device or Host functionality
  • Expansion header
  • Access to PIC32 I/Os and peripherals

Anwendungen

Sensortechnik

Fußnoten

90 Day Warranty only. After Expiration of Warranty returns must be processed via Microchip.
